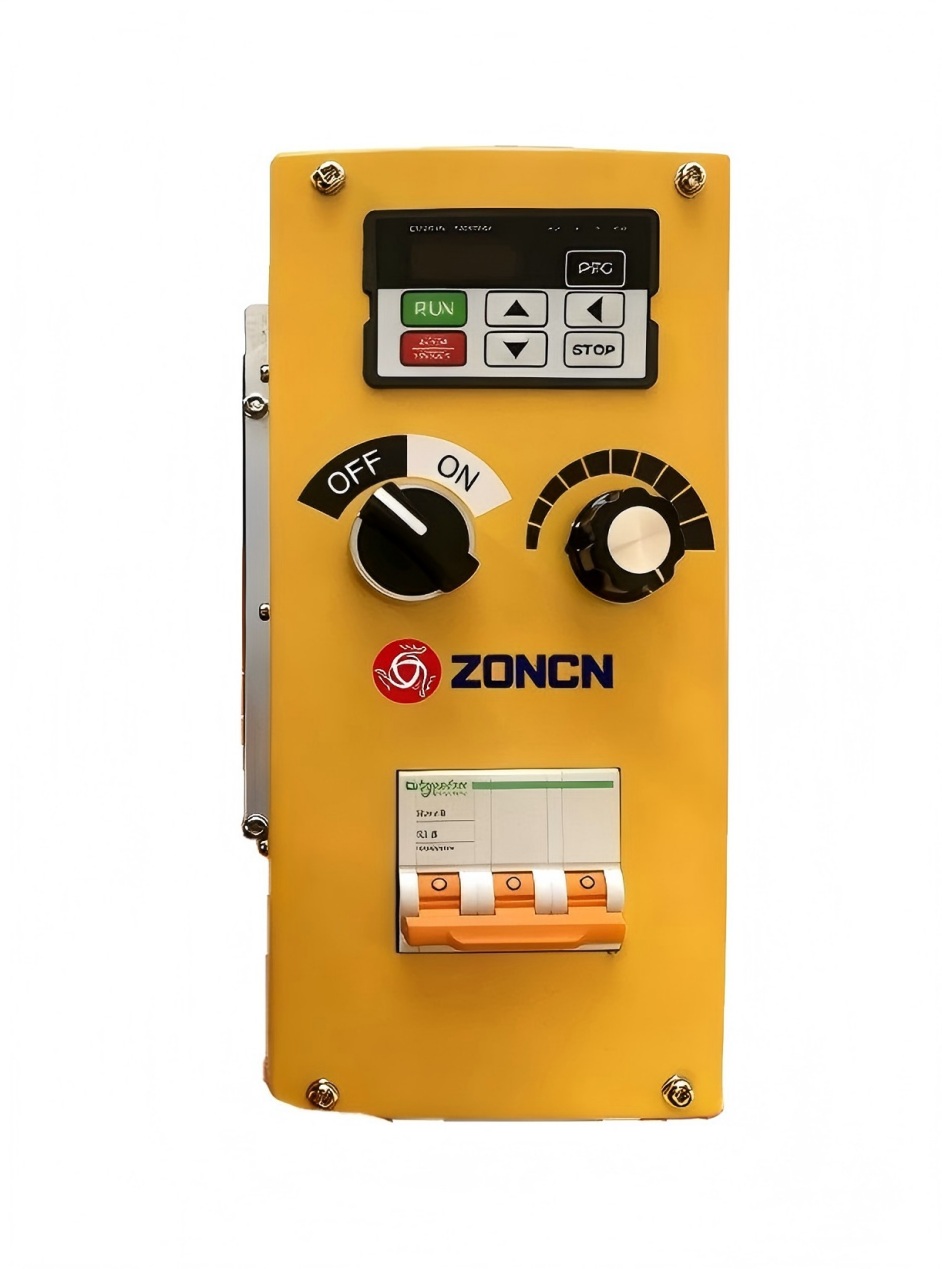

T100T系列 - 高速低速风扇变频器

这款集成式变频器集多功能性、运行平稳、超静音、体积小巧、易于使用和节能高效于一体，具有 12 kHz 的高载波频率、内置旋转开关/数字电位器/启动按钮，可即插即用，采用无柜紧凑设计，具有全面的保护机制，高性能矢量控制针对工业风扇进行了优化，具有出色的低速响应，在 220 V 和 380 V 电压下，功率范围为 0.75–2.2 kW。

商品编号 :
T100T
订单（最小起订量） :
20
支付 :
Paypal/TT/Western Union
产品来源 :
Shanghai, China
颜色 :
Black
交货时间 :
18-30 days
重量 :
73kg

This all-in-one VFD is a game-changer for industrial fan applications, blending ultra-quiet, smooth operation, compact size, and effortless energy savings. With a 12 kHz carrier frequency, it runs nearly silently, even at low speeds. Its plug-and-play design—integrating the VFD, controls, and start button—cuts installation time to zero, no assembly or wiring required. Compact enough to fit without a cabinet, it saves valuable floor space while delivering reliable performance. Built-in protection keeps operations safe, while advanced vector control, tuned specifically for fans, ensures rock-solid low-speed response. Available in 0.75–2.2 kW ratings for both 220 V and 380 V systems, it’s the perfect turnkey solution for any industrial fan setup.

Product Features

Multi-function, smooth start, ultra-quiet, small size, easy operation, energy saving and other advantages
High carrier design, up to 12k
Integration of drive and peripheral electrical equipment; flexible and compact; eliminating cabinet
Integrated VFD, rotary switch, digital potentiometer and start button. No need for manual assembly, wiring and use
Have a variety of protection mechanisms to deal with external accidents
High-performance vector control, adopts international leading field-oriented vector control technology, operates permanent-magnet synchronous motor control
According to the characteristics of industrial fans, the parameters are specially optimized, and perfect low-speed response
Power range：220V 0.75-2.2KW 380V 0.75-2.2KW

Technical Specifications

Category	Item	T100T Specification
Basic Functions	Control Mode	Open-loop vector control (without PG)
	Max. Frequency	0~600.0Hz
	Carrier Frequency	0.5kHz~12.0kHz; auto-adjustable based on load characteristics
	Input Frequency Resolution	Digital setting: 0.1Hz Analog setting: Max. frequency × 0.025%
	Starting Torque	G-type: 150% at 0.5Hz (without PG)
	Speed Range	1:200 (without PG)
	Speed Stability Accuracy	±0.5% (without PG)
	Overload Capacity	G-type: 150% rated current for 60s; 180% rated current for 3s
	Torque Boost	Auto torque boost; manual torque boost: 0.1%~30.0%
	Acceleration/Deceleration Curve	Linear or S-curve acceleration/deceleration; 4 sets of acceleration/deceleration times, range 0.0~6500.0s
	DC Braking	DC braking frequency: 0.00Hz~max frequency Braking time: 0.0s~36.0s Braking action current: 0.0%~100.0%
	Jog Control	Jog frequency range: 0.0Hz~500.0Hz; jog acceleration/deceleration time: 0.0s~6500.0s
	Auto Voltage Regulation (AVR)	Automatically maintains constant output voltage during mains voltage fluctuations
	Overvoltage/Overcurrent Stall Control	Automatically limits current and voltage during operation to prevent frequent overcurrent/overvoltage tripping
	Fast Current Limiting	Minimizes overcurrent faults to protect the drive
	Torque Limiting & Control	"Excavator" characteristic; automatically limits torque during operation to prevent frequent overcurrent tripping
Custom Functions	High Performance	Implements asynchronous motor control using high-performance current vector control technology
	Ride-Through Operation	Compensates for voltage drops via load feedback energy during momentary power outages to maintain operation for a short time
	Fast Current Limiting	Prevents frequent overcurrent faults
	Timing Control	Timing function with setting range: 0.0Min~6500.0Min
	Communication Support	RS-485
Operation	Command Source	Operation panel setting, control terminal setting, serial communication port setting; switchable via multiple methods
	Frequency Source	10 frequency sources: digital setting, analog voltage setting, analog current setting, serial port setting; switchable via multiple methods
	Input Terminals	5 digital input terminals; 1 analog input terminal supporting 0~10V voltage input
	Output Terminals	1 relay output terminal
Display & Keypad Operation	LED Display	Displays parameters
	Keypad Lock & Function Selection	Enables partial or full keypad lock, defining the scope of keypad functions to prevent misoperation
	Protection Functions	Motor short-circuit detection at power-on, input/output phase loss protection, overcurrent protection, overvoltage protection, undervoltage protection, overheat protection, overload protection, etc.
Environment	Installation Site	Indoor, no direct sunlight, free of dust, corrosive gases, flammable gases, oil mist, water vapor, dripping water, or salt spray
	Altitude	Below 1000m
	Ambient Temperature	-10℃~+40℃ (derating required for 40℃~50℃)
	Humidity	Less than 95%RH, no condensation
	Vibration	Less than 5.9m/s² (0.6g)
	Storage Temperature	-20℃~+60℃
	Protection Class	IP20

Specifications

Inverter Model	Input Voltage	Rated Output Power (kW)	Rated Input Current (A)	Rated Output Current (A)	Matched Motor (kW)
T9200T-0R75G	1PH AC220V ±15%	0.75	7.2	3.8	0.75
T9200T-1R5G	1PH AC220V ±15%	1.5	10	5.1	1.5
T9200T-2R2G	1PH AC220V ±15%	2.2	16	9.0	2.2
T120T-0R75G	3PH AC380V ±15%	0.75	3.8	2.1	0.75
T120T-1R5G	3PH AC380V ±15%	1.5	5	3.8	1.5
T120T-2R2G	3PH AC380V ±15%	2.2	5.8	5.1	2.2

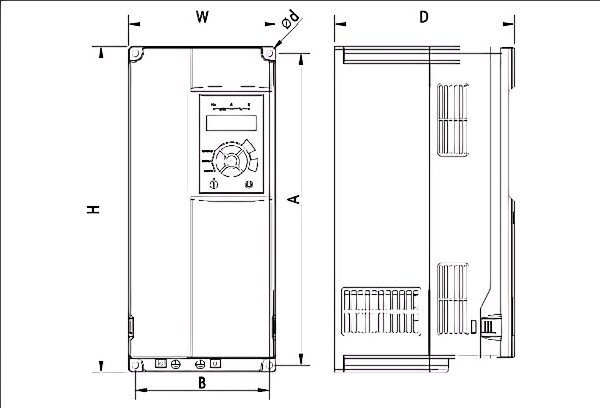

Dimension
