DZ15系列塑壳断路器

DZ15系列塑壳断路器采用多极配置和快速分断机构，配备油阻尼液压长延时脱扣装置，提供反时限保护。该系列断路器适用于交流50Hz、380V、最大电流100A的电路，可提供过载和短路保护，并能满足电路和电机不频繁运行的需求。

商品编号 :
DZ15
订单（最小起订量） :
50
支付 :
Paypal/TT/Western Union
产品来源 :
Shanghai, China
交货时间 :
18-30 days
重量 :
1kg

The DZ15 series molded case circuit breakers are designed for AC 50Hz distribution circuits with a rated operating voltage of 380V and a maximum rated current of 63A (100A). They primarily provide overload and short-circuit protection for electrical circuits, while enabling infrequent switching operations under normal conditions to meet motor startup control requirements. All performance parameters and technical specifications strictly comply with the GB14048.2 national standard, ensuring safe, reliable operation and broad applicability.

Product Features

There are single, two, three, and four poles.
The operating mechanism has obvious quick closing and quick opening functions.
The long delay release adopts an oil damping hydraulic release, which can provide ideal inverse time protection characteristics.

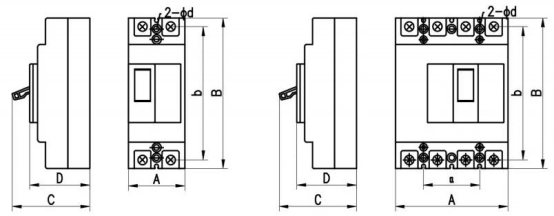

Overall and mounting dimensions

Model	Code	External dimensions	External dimensions	External dimensions	External dimensions
Model	Code	1P	2P	3P	4P
DZ15-40	A	27±1. 05	53±1. 5	78±1. 5	103±1. 75
	B	134±2. 0	134±2. 0	134±2. 0	134±2. 0
	C	88±175	88±1. 75	88±1. 75	88±1. 75
	D	73±5±1. 5	73. 5±1. 5	73. 5±1. 5	73. 5±1. 5
DZ15-100(63)	A	30±1. 05	66±1. 5	96±1. 5	126±2. 0
	B	147±2. 0	147±2. 0	147±2. 0	147±2. 0
	C	96±1. 75	96±1. 75	96±1. 75	96±1. 75
	D	80±1. 5	80±1. 5	80±1. 5	80±1. 5

Model Unit in mm	Code	Installation dimensions	Installation dimensions	Installation dimensions	Installation dimensions
Model Unit in mm	Code	1P	2P	3P	4P
DZ15-40	a			25±0. 26	50±0. 31
	b	120±0. 435	120±0. 435	120±0. 435	120±0. 435
	Mounting Hole Φ	φ5±+0. 30	φ5±+0. 30	φ5±+0. 30	φ5±+0. 30
DZ15-100(63)	a			30±+0. 26	60±0. 37
	b	130±0. 50	130±0. 50	130±0. 50	130±0. 50
	Mounting Hole Φ	φ6±+0. 3	φ6±+0. 36	φ6±+0. 36	φ6±+0. 36
