JM1系列塑壳断路器

塑壳断路器是我公司采用国际先进设计和制造技术研发的新型断路器之一。该产品具有体积小、分断能力高、灭弧短、抗振能力强等特点，是陆地和船舶应用的理想选择。

商品编号 :
JM1
订单（最小起订量） :
50
支付 :
Paypal/TT/Western Union
产品来源 :
Shanghai, China
交货时间 :
18-30 days
重量 :
1kg

Molded case circuit breakers (MCCBs) are classified into four types based on their rated ultimate short-circuit breaking capacity (LCU): Type C (Basic), Type L (Standard), Type M (High Breaking), and Type H (Ultra High Breaking). Their rated insulation voltage is 800V (500V for the JM1-63 model), suitable for low-frequency switching and low-frequency motor starting in AC systems with 50Hz and voltages up to 690V. MCCBs are equipped

Product Features

Small volume
High breaking height
Short flying arc
Anti vibration
Rated insulation voltage is 800V(JM1-63 is 500V)

Model

Accessory Name	No accessories	Alarm contact		Separator	Auxiliary contact	Lack of voltage separator		Auxiliary contact of separator		Lack of voltage separator	Two sets of auxiliary contacts	Lack of auxiliary contacts for voltage separator
Separation method for over current	Code	Code		Code	Code	Code		Code		Code	Code	Code
Instantaneous separator	200	208		210	220	230		240		250	260	270
Duplex separator	300	308		310	320	330		340		350	360	370
Accessory Name	Alarm contact for separator		Auxiliary contact Alarm contact		Lack of voltage separator Alarm contact		Separate auxiliary contacts Alarm contact		Lack of voltage separator Alarm contact		Two sets of auxiliary contacts Alarm contact	Auxiliary contact lacking voltage separator Alarm contact
Separation method for over current	Code		Code		Code		Code		Code		Code	Code
Instantaneous separator	218		228		238		248		258		268	278
Duplex separator	318		328		338		348		358		368	378

Specifications

Type	Rated Current of over current release（A）
JM1-63	(6), 10, 16, 20, 25, 32, 40, 50, 63
JM1-100	(10), 16, 20, 25, 32, 40, 50, 63, 80, 100
JM1-225	100, 125, 140, 160, 180, 200, 225
JM1-400	225, 250, 315, 350, 400
JM1-630	400, 500, 630
JM1-800	630, 700, 800

Note1: 6A specification only has electromagnetic (instantaneous) type; () is not a recommended specification

Main Technical Parameters

1. The thermal motion separator of the circuit breaker has anti time limiting characteristics, and the electromagnetic separation is an instantaneous action. The characteristics are shown in the table(for distribution).

Separator Rated current (A)	Thermal motion separator(Ambient temperature+40℃)			Electromagnetic separator Action current(A)
Separator Rated current (A)	1. 05ln(Cold state) No action time(h)	1. 30ln(Cold state) No action time(h)	3. 0ln Return characteristic current Returnable time(s)
10≤In≤63	1	1	5	10ln±20%
63<In≤100	2	2	8
100<In≤800	2	2	12	10ln±20%and 5In±20%

2. For protecting electric motors(Ambient temperature 40℃)

Test current name	Current multiplier	Appointed time		Initial state
Test current name	Current multiplier	10≤In≤225	225<In≤800	Initial state
Agree not to separate current	1. 0			Cold state
Agreed separation current	1. 2			Hot state
	1. 5	<4min	<8min	Hot state
	7. 2	4s<Tp≤10s	6s<Tp≤20s	Cold state

3. The operating current of the electromagnetic separator used to protect the motor is 12In±20%(A)

4. When the external voltage of the separator is between 70% and 110%of the rated control power supply voltage, it can reliably disconnect the circuit breaker.

5. When the power supply voltage drops to within the range of 70% to 35%of the rated working voltage of the deficient voltage separator, the deficient voltage separator can reliably disconnect the circuit breaker; when the power supply voltage is lower than 35% of the rated working voltage of the under voltage separator, the under voltage separator can prevent the circuit breaker from closing; When the voltage is higher than 85%of the rated working voltage of the voltage separator, the lack of voltage separator can ensure the reliable closure of the circuit breaker.

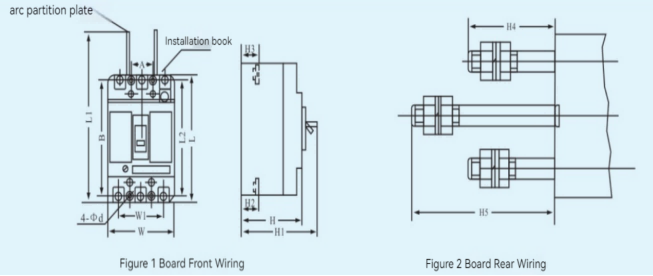

Overall and mounting dimensions

Model	External dimensions											Installation dimensions
	Front panel wiring									Backboard wiring		Installation dimensions
	W	L	H	W1	L1	H1	H2	H3	L2	H4	H5	A	B	φD
JM1-63L	78	135	74	50	170	90. 5	20	20	117	57	75	25	117	3. 5
JM1-63M	78	135	82	50	170	98. 5	28	28	117	57	75	25	117	3. 5
JM1-100C	92	150	68	60	187	86	24	24	129	63	103	30	129	4. 5
JM1-100L	92	150	68	60	187	86	24	24	129	63	103	30	129	4. 5
JM1-100M	92	150	86	60	187	104	24	24	129	63	103	30	129	4. 5
JM1-100H	92	150	86	60	187	104	24	24	129	63	103	30	129	4. 5
JM1-225C	107	165	86	70	215	110	24	24	144	65	110	35	126	4. 5
JM1-225L	107	165	86	70	215	110	24	24	144	65	110	35	126	4. 5
JM1-225M	107	165	103	70	215	127	24	24	144	65	110	35	126	4. 5
JM1-225H	107	165	103	70	215	127	24	24	144	65	110	35	126	4. 5
JM1-400C	140	257	105	88	357	153	36. 5	36. 5	224	70	120	44	195	7
JM1-400L	140	257	105	88	357	153	36. 5	36. 5	224	70	120	44	195	7
JM1-400M	140	270	105	88	370	153	36. 5	36. 5	234	70	125	44	195	7
JM1-630H	182	270	110	116	370	160	43	43	234	61	121	58	200	7
JM1-630C	182	270	110	116	370	160	43	43	234	61	121	58	200	7
JM1-630L	182	270	110	116	370	160	43	43	234	61	121	58	200	7
JM1-630M	210	280	107	140	380	142	33	33	296	96	96	70	243	7
JM1-800M	210	280	107	140	380	142	33	33	296	96	96	70	243	7
JM1-800H	210	280	107	140	380	142	33	33	296	96	96	70	243	7
