DZ47LE-63 RCBO

DZ47LE-63 是一款紧凑型断路器，专为住宅建筑设计，可提供过载保护、短路电流保护、正弦交流接地故障电流保护、间接和直接电击保护以及绝缘故障引起的火灾危险保护。

商品编号 :
DZ47LE-63
订单（最小起订量） :
50
支付 :
Paypal/TT/Western Union
产品来源 :
Shanghai, China
交货时间 :
18-30 days
重量 :
1kg

The device, a silent sentinel in the heart of every residential building, stands vigilant against a myriad of electrical perils. It forms an unyielding shield, safeguarding homes from the insidious threats of overload, where excessive current threatens to overwhelm circuits; short-circuit currents, sudden surges that can ignite chaos; sinusoidal alternating earth fault currents, stealthy leaks that seek ground; and both indirect and direct contacts, ensuring no human hand or metal surface becomes a conduit for harm. Beyond these, it guards against the smoldering danger of fire hazards born from insulation faults.

Product Features

Protection against overload and short-circuit currents.

Protection against the effects of sinusoidal alternating earth fault currents.

Protection against indirect contacts and additional protection against direct contacts.

Protection against fire hazard caused by insulation faults.

Used in residential building.

According to the type of instantaneous release classified as follows: type B(3-5)In, type C(5-10)In.

Release

Type	Test current	Tripping time	Type	Test current	Tripping time
B, C	1. 13In	t≥1h(In≤63A)	B	3In	t≥0. 1s
	1. 13In	t≥2h(In>63A)
			C	5In	t≥0. 1s
B, C	1. 45In	t<1h(In≤63A)
	1. 45In	t<2h(In>63A)	B	5In	t<0. 1s
B, C	2. 55In	1s<t<60s(In≤32A)
			C	10In	t<0. 1s
	2. 55In	1s<t<120s(In>32A)

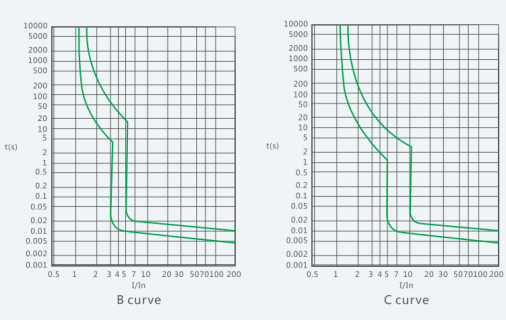

Curve (IEC/EN 60898-1) B, C Curve

Specifications

Type	Standard	-	IEC/EN 61009-1
Electrical features	Poles	P	1P+N, 2, 3, 3P+N, 4
	Type (wave form of the earth leakage sensed)	-	AC
	Thermo-magnetic release characteristic	-	B, C
	Rated current In	A	6, 10, 16, 20, 25, 32, 40, 50, 63
	Rated voltage Ue	V	230/400
	Rated sensitivity IΔn	A	0.03, 0.05, 0.1, 0.3
	Rated residual making and breaking capacity IΔm	A	500(In ≤ 40A) / 630(In > 40A)
	Rated short-circuit capacity Icn	A	4500, 6000
	Break time under IΔn	S	≤ 0.1
	Rated frequency	Hz	50/60
	Rated impulse withstand voltage (1.2/50)Uimp	V	4000
	Dielectric test voltage at ind. Freq. for 1min	KV	2
	Insulation voltage Ui	V	500
	Pollution degree	-	2
Mechanical features	Electrical life	t	2000
	Mechanical life	t	2000
	Contact position indicator	-	Yes
	Protection degree	-	IP20
	Ambient temperature (with daily average ≤ 35℃)	℃	-5 ~ +40
	Storage temperature	℃	-25 ~ +70
Installation	Terminal connection type	-	Cable/Pin-type busbar
	Terminal size top/bottom for cable	mm²	25
	Terminal size top/bottom for cable	AWG	18-3
	Terminal size top/bottom for busbar	mm²	25
	Terminal size top/bottom for busbar	AWG	18-3
	Tightening torque	N·m	2
	Tightening torque	In-lbs	18
	Mounting	-	On DIN rail EN60715 (35mm) by fast clip
	Connection	-	From top

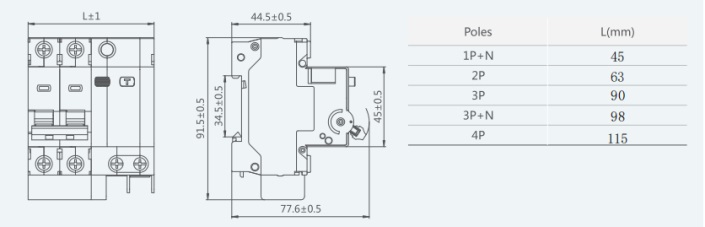

Overall and mounting dimensions
